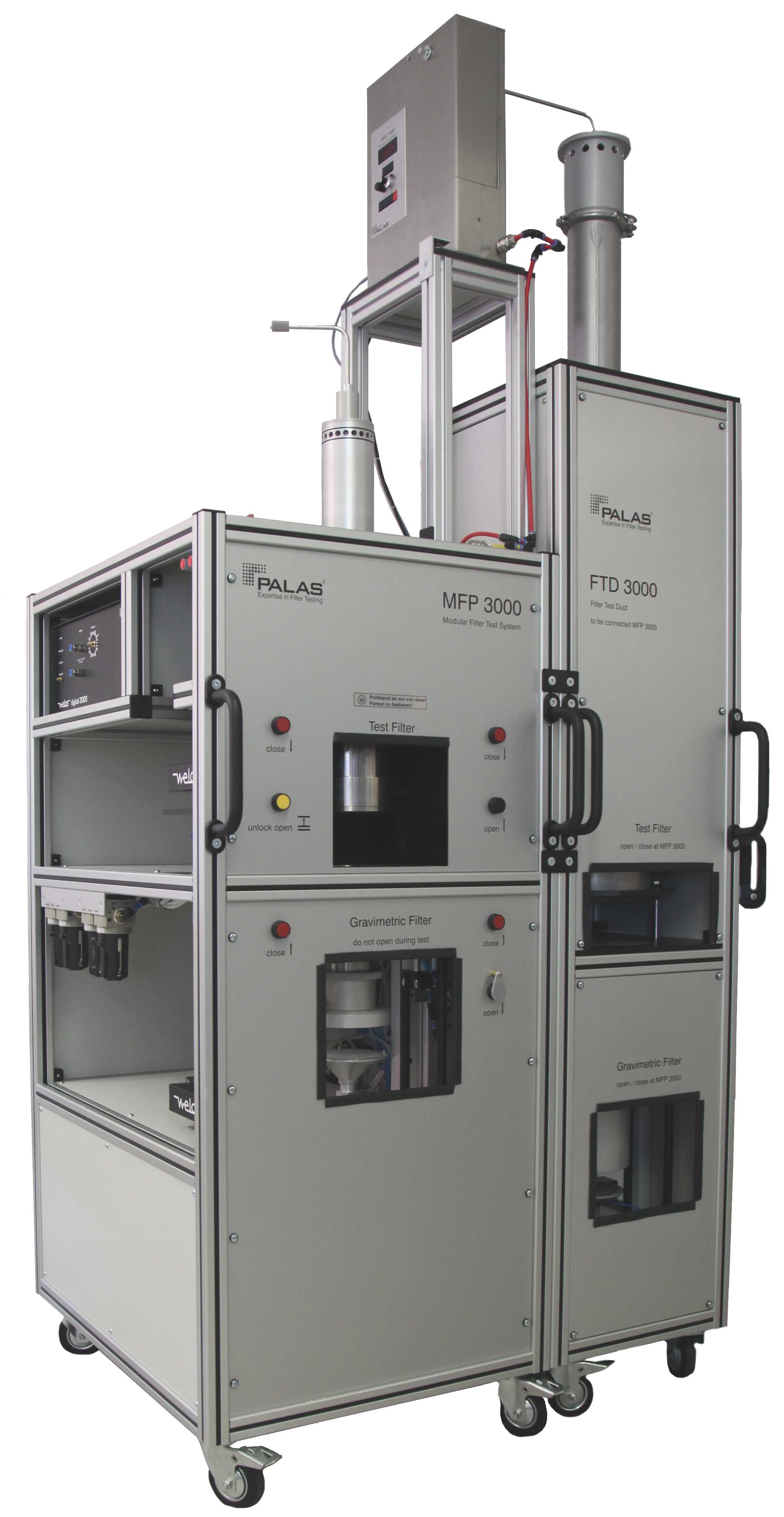

MFP 3000 G

Filterprüfstand, Filtermedienprüfstand, Filterprüfsystem, Filtermedien, Streulichtspektrometer, Aerosolgenerator, Aerosolkonzentration, Aerosolerzeugung, Partikelgrößenanalyse, Fraktionsabscheidegradmessungen, Mess- und Regeltechnik
Version for testing filter media better than ISO 16890 room air filters

Version MFP 3000 G is especially tailored to the requirements of the ISO 16890 measurement procedure.

Norms and certificates

National and international standards

ISO 5011 ISO/TS 19713 DIN 71460 ISO 11155-1 EN 779 ASHARE 52.2 ISO 16890

Operation principle
Benefits

Your special advantages

  • Virtually simultaneous particle measurement in the raw gas and clean gas
  • Particle size measurements from 0.2 – 40 µm
  • Measurement of Cn max= 4x104 particles/cm3 without dilution
  • Internationally comparable measurement results
  • Widespread distribution of the measurement system
  • High reproducibility of the testing method
  • Easy use of different test aerosols, e.g. SAE Fine and Coarse, NaCl/KCl, DEHS
  • Highest raw gas concentrations of up to > 70 mg/m3 (ISO Fine) or > 300 mg/m3 (ISO Coarse) with measurement of the fraction separation efficiency for burden tests
  • Flexible filter test software FTControl
  • Sequence programs for pressure loss measurements, measurements of fraction separation efficiency and burden measurements
  • Easy to operate, even untrained personnel can be instructed quickly in the use of the equipment
  • Short set-up times
  • Cleaning and calibration can be performed autonomously by the customer
  • Easy use of the measurement technology components – even in other applications
  • Mobile setup, easy to move on castors
  • Reliable operation
  • Validation of the clear function of individual components and the overall system during pre-delivery acceptance testing and upon delivery
  • Low-maintenance
  • The unit will reduce your operating costs
Applications

Individual solutions for various industries

  • Testing of filter media and small filter elements in product development and during production monitoring.
  • Testing option based on ISO 16890 (General ventialtion air filters), the test procedure according to ASHRAE 52.2 or EN 779 is optinal available.
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Aerosols
Dusts (e.g., SAE dusts), salts (e.g., NaCl, KCl), liquid aerosols (e.g., DEHS)
Test area of the medium
100 cm2
Measurement range (size)
0.2 – 40 µm
Measurement range (mass)
Up to 1,000 mg/m³ (depending on the version)
Volume flow
1 – 35 m3/h - suction mode
Differential pressure measurement
0 – 1,200 Pa selectable, 0 – 2,500 Pa selectable, 0 – 5,000 Pa selectable
Inflow velocity
5 cm/s – 1 m/s (others on request)
Compressed air supply
6 – 8 bar
Dimensions
2.500 • 680 • 1.550 mm (H • B • T)
Downloads

More information about MFP 3000 G

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF


Palas Brochure MFP System
