U-RANGE 2000

Combination of Fidas® 200 and U-SMPS systems for particle measurements in the size range of 4 nm to 40 µm

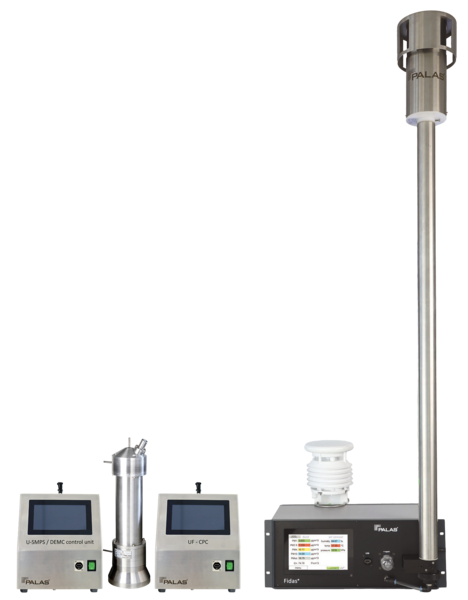

The Palas U-RANGE combines two systems for continuously measuring airborne particles in a size range of 4 nm to 40 μm (depending on the configuration).

The U-SMPS is a standard system for exact measurements of nanoparticle size distributions. Aerosol particles are selected in the classifier (DEMC) according to their electrical mobility and then counted by a condensation particle counter (UF‐CPC). Prof. Wiedensohler (IfT Leipzig, Germany) developed the algorithm used by Palas for the inversion of the measured data to yield the particle size distribution for the U-SMPS.

The Fidas® 200 is a fine dust measurement system for ambient air quality measurements for regulatory purposes. It uses the recognized measurement technology of optical light scattering of single particles and is equipped with an LED light source with stable output and a long lifetime.

Operation principle
Benefits

Your special advantages

  • Particle size distributions from 4 nm to 40 µm
  • Additional determination of PM fractions (e.g. PM2.5, PM10)
  • Continuous and fast-scanning principle of measurement
  • High resolution in up to 64 size classes/decade
  • Graphic display of measurement values
  • Intuitive operation using 7" touchscreen and GUI
  • Integrated data logger
  • Supports multiple interfaces and remote access
  • Low maintenance
  • Reliable function
  • Reduces your operating expenses
Applications

Individual solutions for various industries

  • Aerosol research
  • Environmental and climatic studies
  • Inhalation experiments
  • Filter test
  • Interior and workplace measurements
  • Distribution studies (e.g. fires, volcanoes)
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Particle size range
4 – 40,000 nm
Volume flow
4.8 l/min
Volume flow (sheath air)

2.5 – 10 l/min
Size channels
Max. 120 (32/decade)
Time resolution
3 min
Interfaces
USB, Ethernet (LAN), Wi-Fi, RS-232/485
User interface
Touchscreen, 800 • 480 pixel, 7" (17.78 cm)
Data logger storage
4 GB
Software
PDAnalyze
Power supply
115 – 230 V, 50/60 Hz
Operation liquid
Butanol, isopropanol, water or other (UF-CPC)
Dimensions
Fidas®: 185 • 450 • 320 mm (H • B • T) (19“), UF-CPC: 330 • 380 • 240 mm (H • B • T), U-SMPS Säule: 150 • 570 mm (ø base • H, U-SMPS), U-SMPS Kontrolleinheit: 330 • 380 • 240 mm (H • B • T)
Weight
Approx. 9.3 kg (Fidas®, U-SMPS column), approx. 12.9 kg (U-SMPS control unit), approx. 10 kg (U-SMPS UF-CPC)
Downloads

More information about U-RANGE 2000

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
