RBG 1000 ID

RBG 100 ID

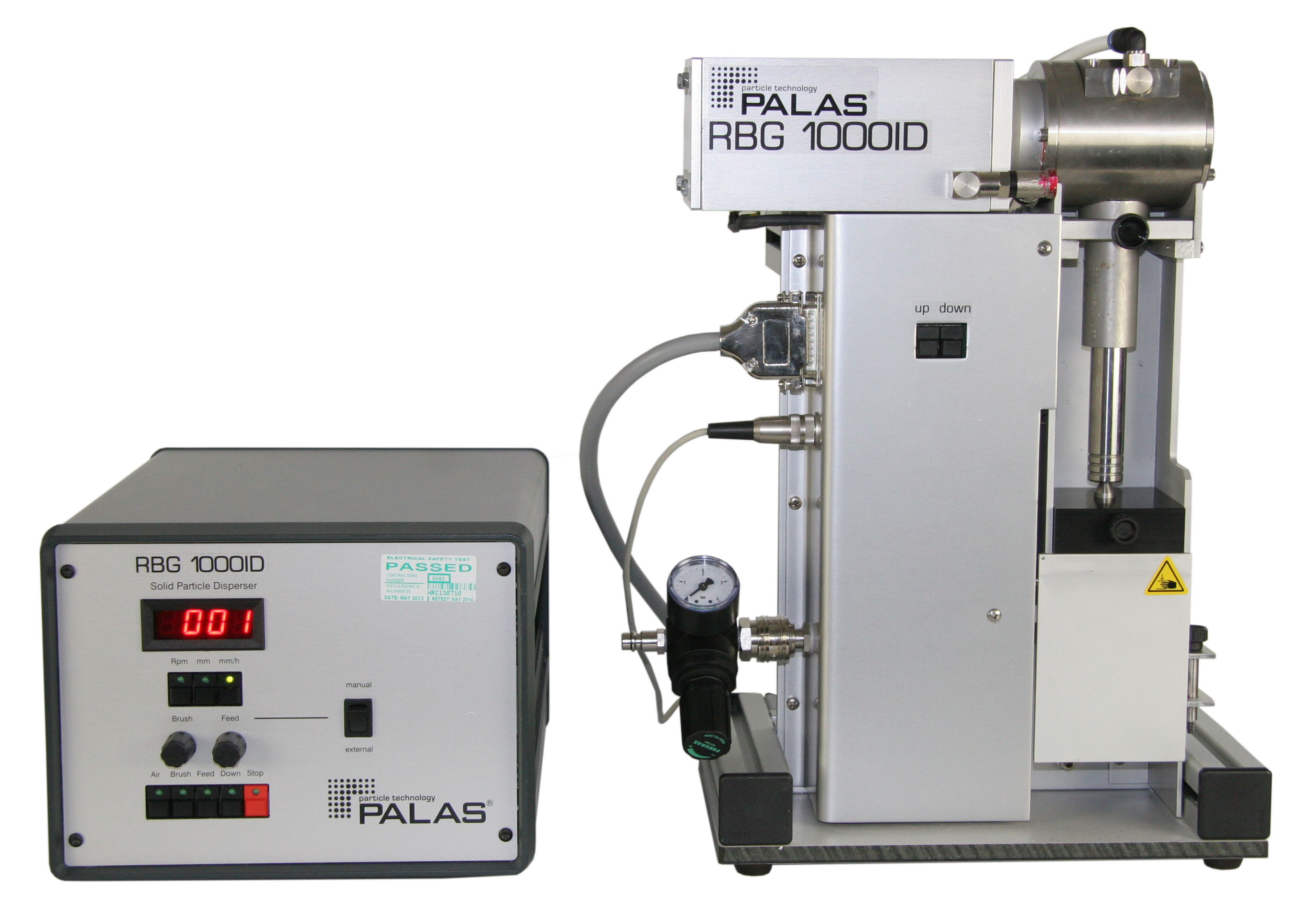

Seperate dispersing unit and control unit , pressure-resistant up to 3 bar overpressure, optional vacuum operation from 300 mbar (absolute pressure)
Die Dispergiereinheit und die elektrische Steuereinheit können bis zu 2 m voneinander getrennt aufgestellt werden.

Die Rücklaufgeschwindigkeit beim Behälterwechsel ist beim RBG 1000 I optimiert und schneller als bei den anderen RBG Varianten. Sie beträgt lediglich ca. 1 Minute.

Optional kann diese Version auch für den Unterdruckbetrieb ab 300 mbar absolut eingesetzt werden.

Die Feststoffbehälter von 7, 10, 14 oder 20 mm Durchmesser sind druckfest.

Für den Einsatz im Unterdruckbetrieb werden spezielle druckfeste Feststoffbehälter verwendet, deren Stempel mit einem Greifer fest mit der Vorschubeinheit verbunden ist. Dies gewährleistet einen störungsfreien Betrieb im Unterdruck. Ältere RBG Modelle können bei Palas® mit dieser Option nachgerüstet werden.

Der Feststoffbehälter mit 28 mm Durchmesser ist nicht druckfest, kann aber im RBG 1000 ID bei der Dosierung in atmosphärischen Bedingungen eingesetzt werden.

Bei der druckfesten Variante RBG 1000 D wird Druckluft als Disgergiergas verwendet. Der Betrieb mit Stickstoff oder anderen inerten Gasen ist nicht zulässig.

Operation principle
Benefits

Your special advantages

  • Pressure resistant up to 3 barg overpressure
  • Optional: negative pressure operation from 300 mbar absolute, remote control or computer control
  • Highest short-term and long-term dosing consistency
  • Disperses practically all non-cohesive dusts
  • Easy exchange of different solids containers and dispersion lids
  • Easy determination and adjustment of mass flow
  • Pulse operation
  • Easy cleaning of the unit
  • Quick and easy operation
  • Reliable function
  • Low maintenance
  • Reduces your operating costs
Applications

Individual solutions for various industries

  • All applications pressure-resistant up to 3 barg overpressure
  • Dispersion of radioactive substances
  • Dispersion of pharmaceutical powders
  • Filter industry:
    • Determination of fractional separation efficiency
    • Determination of total separation efficiency
    • Long-term dusting
    • Filter media and ready-made filters
    • Dust removal filters
    • Vacuum cleaners and vacuum cleaner filters
    • Car interior filters
    • Engine air filters
  • Calibration of particle measurement devices
  • Flow visualization
  • Inhalation tests
  • Tracer particles for LDA, PIV, etc.
  • Coating of surfaces
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Particle size range
0.1 – 100 µm
Maximum particle number concentration
Ca. 107 particles/cm3
Volume flow
0.5 – 5.0 m3/h
Mass flow (particles)
0.04 – 430 g/h (with an assumed compacted density of 1 g/cm3)
Filling height
70 mm
Filling quantity
2.7 g (reservoir Ø = 7 mm), 5.5 g (reservoir Ø = 10 mm), 10.8 g (reservoir Ø
= 14 mm), 22 g (reservoir Ø = 20 mm), 43 g (reservoir Ø = 28 mm)
Power supply
115 – 230 V, 50/60 Hz
Particle material
Non-cohesive powders and bulks
Dosing time
Several hours nonstop
Pre-pressure
4 – 8 bar
Carrier/dispersion gas
Air
Maximum counter pressure
0.2 barg
Compressed air connection
Quick coupling
Feed rate
5 – 700 mm/h
Reservoir inner diameter
7, 10, 14, 20, 28 mm
Aerosol outlet connection
Dispersion cover type A: Øinside= 5 mm, Øoutside = 8 mmDispersion cover type B: Øinside= 3.6 mm, Øoutside = 6 mmDispersion cover type: Øinside= 2.5 mm, Øoutside = 6 mm
Dispersion cover
Type A, type B, type C, type D
Dimensions
Dispersion unit: 430 • 300 • 180 mm (H • W • D)
Weight
Approx. 19 kg
Downloads

More information about RBG 1000 ID

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
