Fidas® 200 E

EN 16450 approved fine dust aerosol spectrometer for simultaneous measurement of PM2.5 and PM10, featuring a separate sensor for existing roof glands

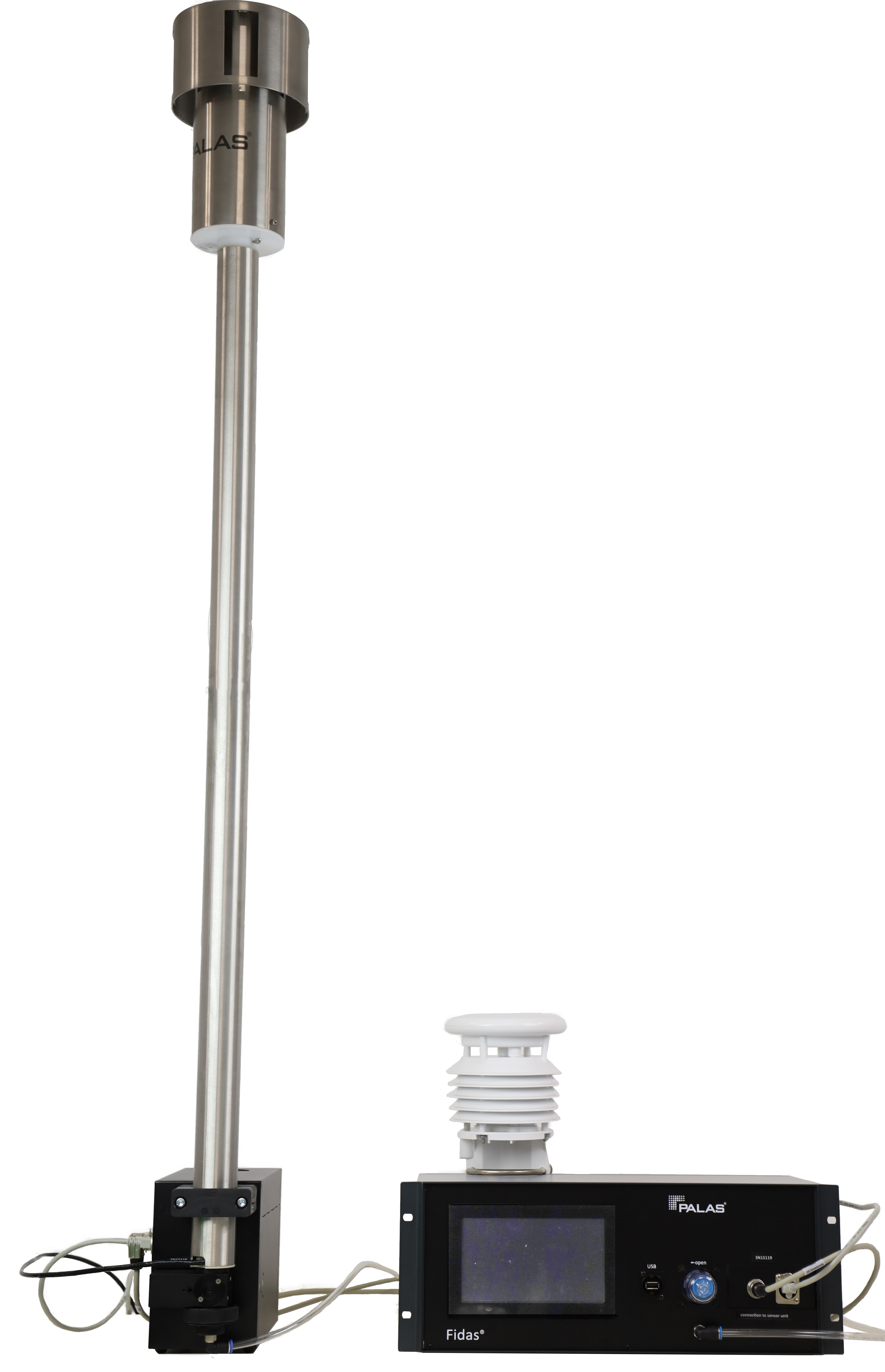

The Fidas® 200 E version shown here consists of a 19" plug-in unit and a remote sensor (connection length 3 m, other sizes on request) for use in air-conditioned monitoring stations (temperature range 5 - 40 °C). The remote sensor, flanged to the lower end of the aerosol sampling tube, greatly simplifies installation in stations with an existing roof penetration. Variants of the Fidas® 200 E are the basic Fidas® 200 and the Fidas® 200 S (with stainless steel weatherproof housing) designed for outdoor installation.

Norms and certificates

National and international standards

VDI 4202-1 VDI 4203-3 EN 12341 EN 14907 EN 16450 EU-Äquivalenzleitfaden EN 15267-1/-2 TÜV Rheinland MCERTS

Operation principle
Benefits

Your special advantages

  • Type-approved and certified according to latest EN requirements (EN 15267)
  • High flexibility for installation due to separation of sensor unit and control unit
  • Continuous and simultaneous real-time measurement of multiple PM values
  • Additional information on particle number concentration and particle size distribution
  • Light source: LED with high stability and long lifetime
  • Long service life
  • Low maintenance
  • External check of calibration on site possible
  • Intuitive and easy to operate
  • Reliable function, very high data availability (> 99 %)
  • 2 pumps in parallel operation for additional operational safety due to redundancy
  • Permanent monitoring of status, among others online monitoring of calibration
  • Remote monitoring, maintenance and control easily possible
  • No radioactive material
  • No consumables
  • Low energy consumption
Applications

Individual solutions for various industries

  • Regulatory pollution control in monitoring networks
  • Ambient air monitoring campaigns
  • Long-term studies
  • Emission source attribution
  • Emission dispersion studies (e.g. fires, volcanoes)
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Measuring principle
Optical light scattering at single particles
Reported data
PM1, PM2.5, PM4, PM10, TSP, CN, particle size distribution, ambient pressure, ambient temperature, rel. ambient humidity
Measurement range (number C_N)
0 – 20,000 particles/cm3
Measurement range (size)
0.18 – 18 µm (certified range, other measuring ranges on request)
Measurement range (mass)
0 – 10,000 µg/m3
Measurement uncertainty
9.7 % for PM2.5, 7.5 % for PM10 (expanded measurement uncertainty according to EN 16450, TÜV Report)
Volume flow
4.8 l/min ≙ 0.3 m3/h ± 3% (24h), complient with EN 16450
Size channels
64 (32/decade)
Time resolution
1 s – 24 h
Interfaces
USB, Ethernet (LAN), RS-232, Wi-Fi
User interface
Touchscreen, 800 • 480 pixel, 7" (17.78 cm)
Protocols
UIDEP, UDP, ASCII, MODBUS, Bayern-Hessen
Data logger storage
Capacity for 2 years continuous operation at 60 s storage interval
Software
PDAnalyze
Data acquisition
Digital, 20 MHz processor, 256 raw data channels
Light source
Long term stable LED
Housing
Table housing, optional: with mounting brackets for rack-mounting (control unit)
Operating system
Windows 10 IoT Enterprise
Power supply
115 – 230 V, 50/60 Hz
Installation conditions
+5 – +40 °C
Response time
< 2 s
Sampling head
Passive collector Sigma-2
Dimensions
Control unit: 450 • 320 • 180,5 mm (H • W • D) (19"), external sensor: 240 • 180 • 120 mm (H • W • D) (19")
Weight
Control unit: 9.3 kg, sample head: 2.25 kg, sample tube: 4.5 kg
Sampling system
Drying of the aerosol by IADS (Intelligent Aerosol Drying System)
Noise emission
< 70 dB(A)
Fuse
T2A
Resolution
0.1 µg/m3
Power consumption
Normal operation: 60 W, max. 200 W
Data Management
Prepared for connection to the Palas Cloud MyAtmosphere ("MyAtmosphere-ready"); internet access and separate registration required.MyAtmosphere terms and conditions of use apply.
