BEG 1000

BEG 1000: Erzeugt Test-Prüfaerosole aus Pulvern, Stäuben, Pollen. Massenstrom 8 g/h - 7,3 kg/h.
Generation of test aerosols from powder, dust, pollen, etc.; mass flow approx. 8 g/h to 7.3 kg/h

Many research, development, and quality assurance applications require solid particle aerosols from powders and dusts.

For over 20 years, the BEG 1000 has been successfully used for the reliable dispersion of non-cohesive powders, e.g., to generate test dusts and flame soot within the size range of < 100 nm - 200 µm. The unique advantage of this dispersion system is that it can be used continuously with high dosing constancy for low mass flows of up to 8 g/h with the BEG 1000 A and for high mass flows of up to 6 kg/h with the BEG 1000 B. The unique built-in components in the reservoir, the smooth conveyor belt, and the special ejector dispersion nozzle enable the BEG 1000 to provide a finely dispersed aerosol with optimal dosing constancy.

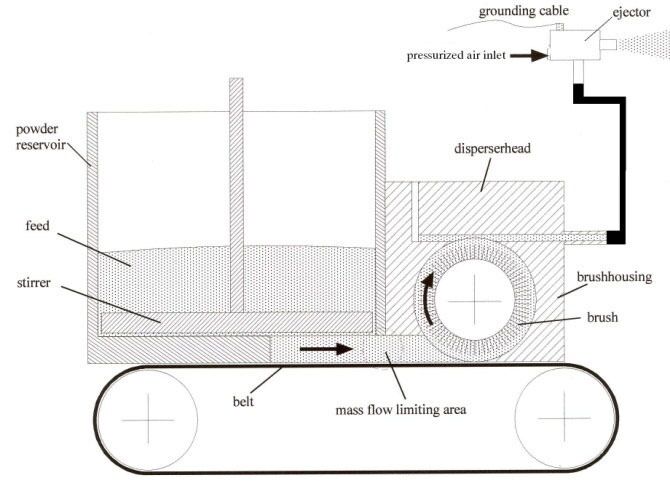

Operation principle
Benefits

Your special advantages

  • Excellent short-term and long-term dosing constancy
  • Easy to operate
  • Quick and easy to clean
  • Remote control or computer-controlled
  • Pulse mode
  • Easy to fill while in operation
  • Large reservoir (1,500 cm3)
  • Robust design, proven in industrial applications
  • Reliable function
  • Reduces your operating expenses
  • Low maintenance
Applications

Individual solutions for various industries

  • Filter industry: Loading test of
    • Engine filters as per ISO 5011
    • Hot gas filters
    • Bag filters
    • Air filters
    • Cyclones
  • Chemical and pharmaceutical industry
  • Cement industry
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Particle size range
0.1 – 200 µm
Maximum particle number concentration
Ca. 107 particles/cm3
Volume flow
80 – 165 Nl/min
Mass flow (particles)
Type A: 8 g – 550 g/h (with reference to SAE Fine, A2 dust), Type B: 100 – 6,000 g/h (with reference to SAE Fine, A2 dust), Type C: 350 – 7,300 g/h (with reference to SAE Fine, A2 dust)
Filling quantity
500 g
Power supply
115 – 230 V, 50/60 Hz
Particle material
Non-cohesive powders and bulks
Dosing time
Several hours nonstop
Pre-pressure
4 – 8 bar
Carrier/dispersion gas
Random (generally air)
Compressed air connection
Quick coupling
Aerosol outlet connection
Type A: Øinside = 6.4 mm, Øoutside = 10 mm | Type B: Øinside = 8 mm, Øoutside = 12 mm | Type C: Øinside = 8 mm, Øoutside = 12 mm
Reservoir volume
1,500 cm3
Dimensions
Dosiereinheit: 610 • 260 • 340 mm (H • B • T), Steuereinheit: 195 • 260 • 340 mm (H • B • T)
