PMPD 100

Dilution system ejector for the PMP application with dilution factor 1:100

The PMPD 100 dilution system is according to the ejector principle specially developed for the PMP application or the PMP measurement chain.

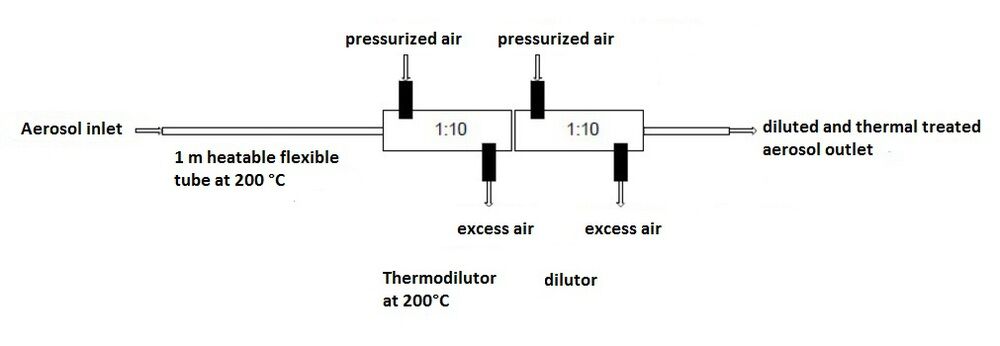

In the PMPD 100, volatile particles are vaporized using a thermodilution up to 200 °C. The dilution factor is 1:100 (see Figure 1). A dilution factor 1:100 (see Figure 1) is achieved by cascading 2 x dilution factor 10.
Operation principle
Benefits

Your special advantages

  • The dilution systems from Palas® are characterized unambiguously. This is documented with a calibration certificate for each individual device
  • The dilution steps for the PMPD series deliver a temporally constant, representative dilution with the factors 100 and 1000
  • Low compressed air consumption (e.g., just 96 l/min. for a dilution factor of 1000 with four VKL 10 systems)
  • The dilution steps are combinable with all common particle counters
Applications

Individual solutions for various industries

  • Dilution system for PMP measurement chain
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Volume flow (clean air)
36 – 90 l/min (heated to 200 °C)
Volume flow (suction flow)
2 – 5 l/min
Power supply
115 – 230 V, 50/60 Hz
Isokinetic suction nozzles
2 – 5 l/min
Maximum particle size
< 10 µm
Thermodynamic conditions for dilution
≤ 400°C
Compressed air supply
4 – 8 bar
Dilution factor
1 : 100
Special features
Evaporation of volatile elements for exhaust emission measurements according to VPR Calibration Procedure AEA/ED 47382/Issue 5 (Volatile Particle Removal Efficiency), chemical resistant, heated to 200 °C
Downloads

More information about PMPD 100

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF


Measurement Report No 235-10383 PMPD 100
